50-80 m3/h 7.5 KW belt conveyor box feeder for clay brick making with converter feeder machine

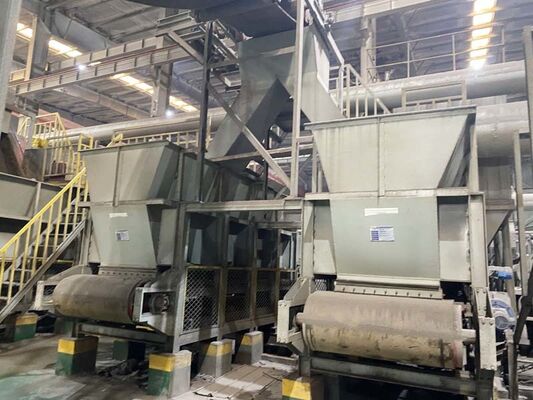

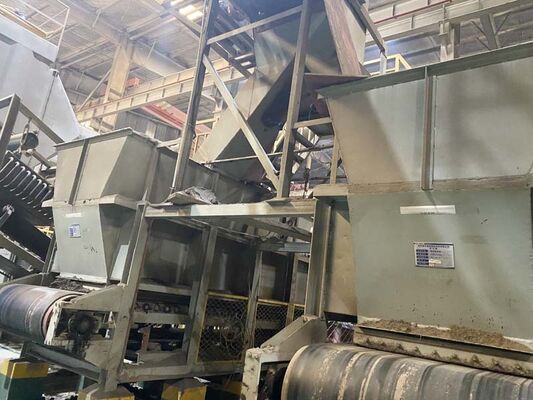

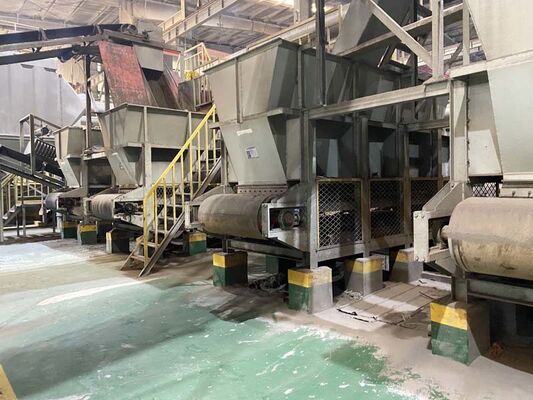

1. Belt conveyor box feeder in the working site

1. The designing is more reasonable and motor from famous brands;

2. Capacity 80 m³/h;

3. Convertor can be added;

4. Empty running in workshop before shipment

5. Drawings for foundation will be provided;

6. Guiding for installation and trial running

7. After sale service is available 7x24 hours online;



2. Working capacity and technical specifications for Belt Conveyor Box feeder

3. Spares and details for Belt Conveyor Box feeder

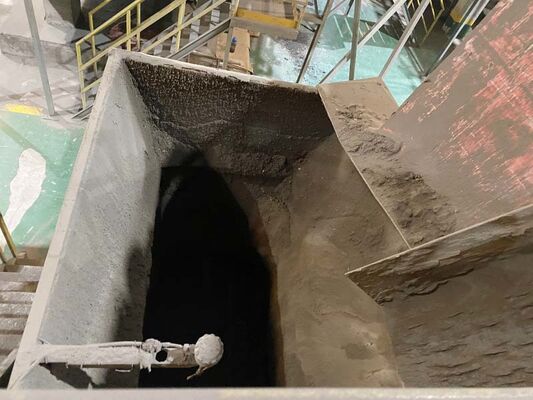

  Hopper is welding by the customers themselves in the local, it is too big for transportation in

the containers. Hopper capacity can be 5 cubic meters, 10 cubic meters or 20 cubic meters according

to customer's requirement.

3.1 Motor for Belt Conveyor Box feeder

4. Belt Conveyor Box feeder in workshop before shipment

5. Transportation for Belt Conveyor Box feeder from BBT's workshop

6. Questions and answers for Conveyor Box feeder from BBT's workshop

1. What type of raw material will be fed?
Answer: dry clay, wet sticky clay, shale, marl, or recycled scraps).
Moisture content is critical—sticky materials require different belt and hopper designs.
2. What is the maximum particle size can be feeding?
Anwer: 200mm, 300mm clay or particles can be feed.
This determines the belt width and skirt board height.
3. What is the material's bulk density by Cubic meters and tons?
Answer: In clay feeding, it is 1 cubic meter=1.3 tons

4.What is the maximum feeding capacity?
Answer: 150 tons/h at the maximum and special capacity can be custom building.

5. What is the required hopper volume (storage capacity)?
Answer: Hopper capacity can be 10 m³ or 20 m³ or according to requirement.
This dictates how long the machine can feed without a refill from the loader.
6. Are there any height restrictions for loading?

(This affects the overall height of the box feeder and the loader clearance).
Answer: Yes, it is depended on what is the height of the workshop
7. How about a specific hopper lining?
Answer: Custom buildiing.
8. Can the hopper opening wide enough for the loader bucket?
Answer: Yes, it can be designed according to requirement.

9. Site & Integration for customer's checking and confirming:
· Where will the machine be installed? (Indoors or outdoors? This affects the need for weather covers).
· What is the available space? (Length, width, and height constraints).
· What are the electrical specifications? (Voltage, frequency, and phase available on site).
